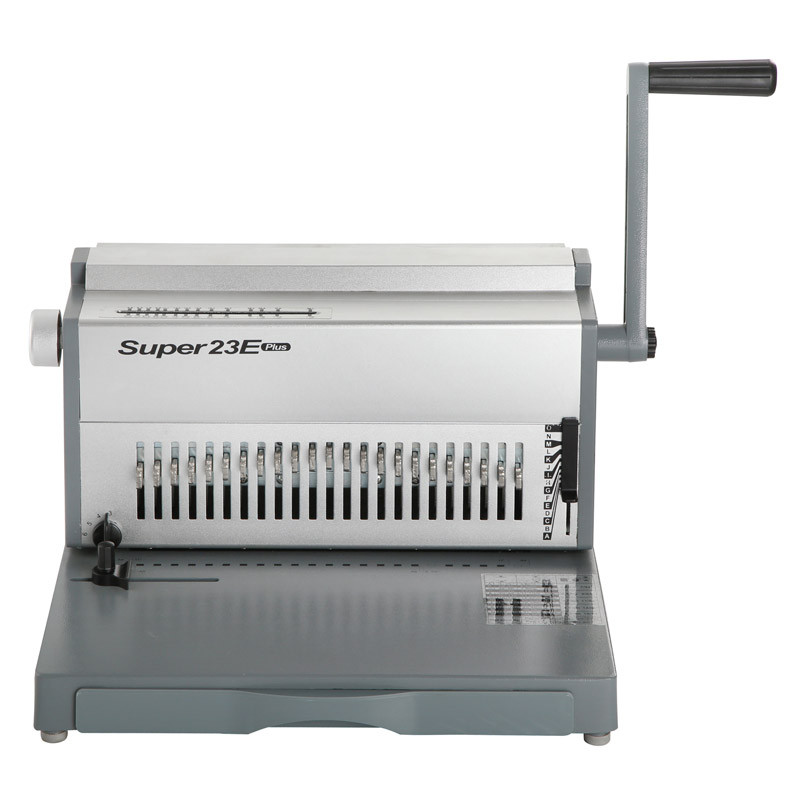

2:1 11 inch electrical double wire binding machine(SUPER23E PLUS)

2:1 11 inch electrical double wire binding machine(SUPER23E PLUS)

2:1 11 inch electrical double wire binding machine(SUPER23E PLUS)
2:1 11 inch electrical double wire binding machine(SUPER23E PLUS)2:1 11 inch electrical double wire binding machine(SUPER23E PLUS)2:1 11 inch electrical double wire binding machine(SUPER23E PLUS)2:1 11 inch electrical double wire binding machine(SUPER23E PLUS)2:1 11 inch electrical double wire binding machine(SUPER23E PLUS)
CategoriesElectric wire binding machine
AlbumView larger image
BrandSUPU
ModelSUPER23E PLUS
OriginZHEJIANG,CHINA
Brandsupu
Width300mm
Punching thickness28sheets
Pitch8.47mm
Disengagement punch pins23
Number o punch pins23
Binding thickness318 sheets
FOB portNingbo/Shanghai
Terms of PaymentT/T
Update Time2018-10-20
Detail Information

2:1 11 inch electrical double wire binding machine(SUPER23E PLUS)

Strong punch capactiyup to 28 sheet per time. Strong binding capacity up to 318 sheets. 3:1, 12.7mm pitch. Full 23 disengagement punch pins can punch wide range size paper,Eg. A4,A3,B5, US letter and smaller size. Select paper stop assistant to ensure the sheet aligning. Document measurement guide you to select right wire size. Smart Wire Selector make it easy choose the correct wire diameter for your document. Special hardened punches assure a clean and precise punch time after time, even when punching hard to punch materials, such as Polyester, PP, PVC

  • Electric Punching up to 28 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 143 sheets.

  • Use all sizes ring from 4.8-14.8 mm

  • Side margin is adjustable.

Maximum:

  • Max. bind up 143 sheets

  • Width 300mm

  • Punch up to 2--3mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently


Model Name

SUPER23E PLUS

Punch Width

300mm

Punching Thickness

28sheets

Punch Width

12.7mm

Disengagement Punch pins

23

Number of punch pins

23

Binding Thickness

318sheets

Motor

230V,50HZ/120W
110V,60HZ/120W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


PRODUCT DETAIL


  • Measure the thickness of the document and select the appropriate apron specification according to the letter

  • Select the correct comb diameter using the document measure


  • Select the correct back margin depth for the number of sheets


  • Select the correct punch profile for the sheet size. Select releasable dies as appropiate


  • Adjust the wire size adjustable knob in terms of the size of the wire


  • Punch sheets in small batches that do not overload the machine of the use
    (Max 28 sheets)

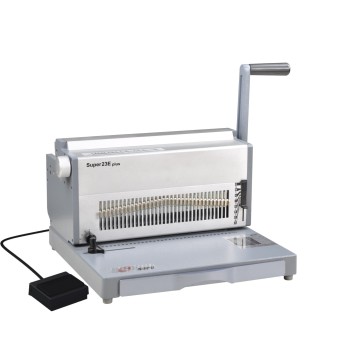

  • The machine punching when pressure foot switch


  • When all punched sheets are loaded on to the wire, press the wire clamp again and take them out


  • Put the sheets on to the binding slot and push the binding handle forward to close the wire


We do a lot of testing before final package to pursue "100% quality" goal!
