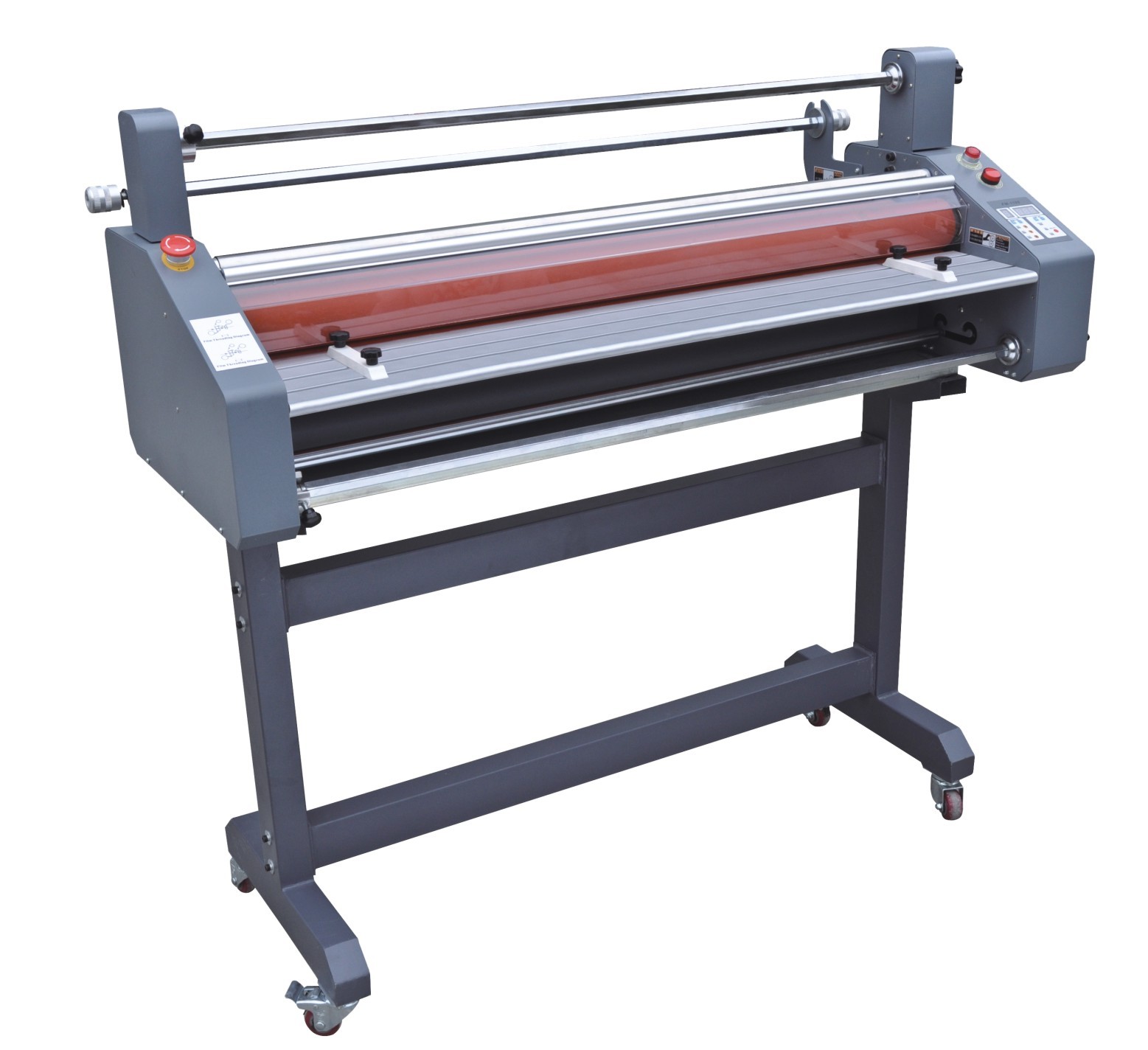

Wide Format Roll Laminator (FM380A)

Wide Format Roll Laminator (FM380A)

Wide Format Roll Laminator (FM380A)
CategoriesLaminator
AlbumView larger image
BrandSUPU
ModelFM380A
Laminating Width340mm
Laminating thickness7mm
Laminating speed3 meter/min
Laminating temperature60-160 Degree
Power supplyAC110V/240 60/50HZ 1300W
Weight60kg
FOB portNingbo/Shanghai
Terms of PaymentT/T
Update Time2018-10-23
Detail Information

WIDE FORMAT ROLL LAMINATOR (FM380A)

It's our new Automatic paper feeder roller laminator for both single sided laminating and double sided laminating. Automatic paper feeder fuction makes your hands free. Single sided laminators are great for laminating shops and small print shops. A single side laminator is the perfect solution for high quality single side lamination of flyers, book covers, posters and more. Now it is possible to do one-sided lamination on an ordinary two-sided laminator. Obviously some material has to be used in place of one of the films: Kraft Paper can be used; It will stick to the film but can be trimmed off and discarded. Or, two rolls of single-sided lamination film can be used, with two items at once being placed back-to-back to be run through; They must be pretty well exactly the same size. But a problem here is that the laminations will almost certainly curl: Single sided laminators have special design .

  • Automatic paper feeder make your hands free

  • Adds new single side Anti-curl functions

  • Adds Trimming Cutter on left,

  •  Adds the Dotted line cutter on right,

  • Electric Adjustment lever can choose different position

Maximum:


  • Max. Width 340mm


  • Max. thickness up to 7mm


  • Film thickness up to 28mic

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently


Model Name

FM-380A

Laminting width

340mm

Laminating thickness

2mm

Laminating speed

6 meter/min

Laminating temperature

60-160℃

Control system

 8-bit microprocessor

Automatic Grade

simile-automatic feed

Power

110/120/220-240V
50/60HZ/1300W

The laminating workshop is preferably a dust-free workshop to ensure the filming effect. The dust on the equipment and on the laminating roller must be completely removed before lamination

When the laminating machine is running, it is forbidden to put your fingers into the two rollers to avoid getting your hands. The pressure of the machine's pressing roller is high. Do not touch it with your hands to prevent burns.


HOW TO USE LAMINATOR
