A4 Size Manual Double wire binding machine CW300

A4 Size Manual Double wire binding machine CW300

A4 Size Manual  Double wire binding machine CW300
A4 Size Manual  Double wire binding machine CW300A4 Size Manual  Double wire binding machine CW300A4 Size Manual  Double wire binding machine CW300
CategoriesManual wire binding machine
AlbumView larger image
BrandSUPU
ModelCW300
Max Punching width30cm (A4)
Max Punching thickness32sheets
Max binding thickness38cm
FOB portNingbo/Shanghai
Terms of PaymentT/T
Update Time2018-08-17
Detail Information

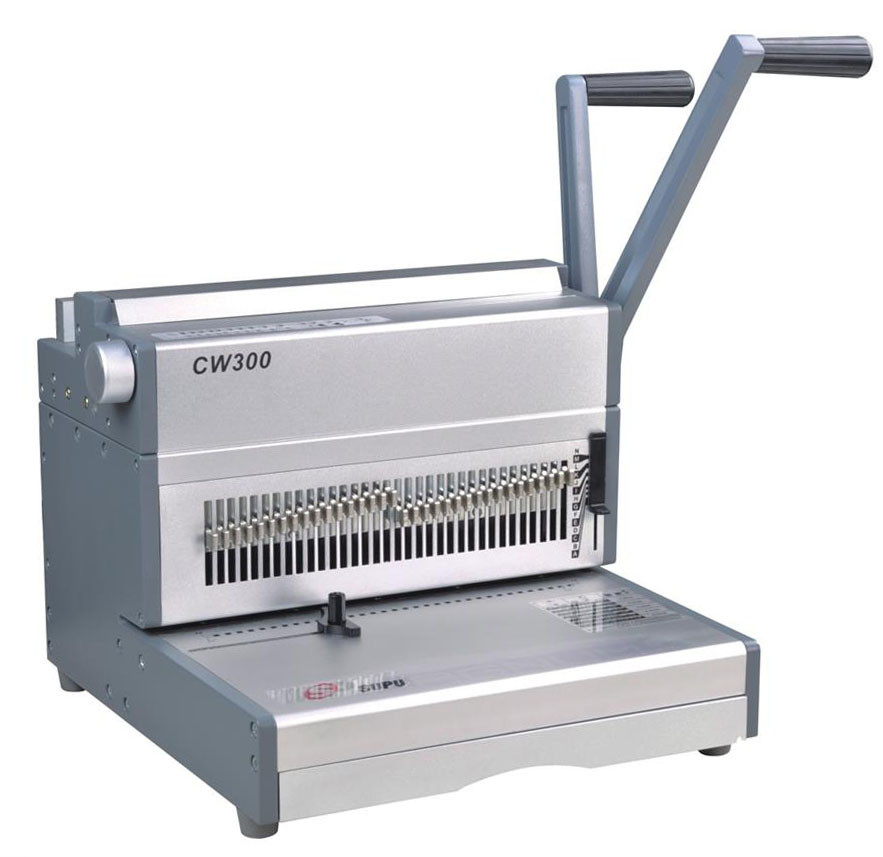

A4 Size  Manual  Double wire binding machine CW300

A4(11")work width. Full 34disengageable punch dies with hard steel for clean punch hole. 4 positiondepth side margin can be adjustable. A sticker on the machine guide you to select the correct wire dimeter. Manual Punch & BindingMachine with two seperated handle. 3:1 Wire Binding Machine ,3:1 wire punching and 3:1&2:1 wire binding. The paper load is horizontal and has a margin guide to assist the user with the work being done. Maximum binding capacityup to 143 sheets with 3:1 wire,punch up to 32 sheets,

  • Electric Punching up to 32 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 143 sheets.

  • Use all sizes ring from 4.8-14.8 mm.

  • Side margin is adjustable.

Maximum:

  • Thickness 34mm

  • Punching up to 30 sheets

  • Max.thickness 50mm

  • Thickness 34mm

  • Punching up to 30 sheets

  • Max.thickness 50mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently


Model Name

CW300

Punch Width

300mm

Punching Thickness

32sheets

Punch Width

8.47mm

Disengagement Punch pins

34

Number of punch pins

34

Binding Thickness

143sheets

Motor

NO

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


We do a lot of testing before final package to pursue "100% quality" goal!
