A4 Electric Comb Binding Machine

A4 Electric Comb Binding Machine
A4 Electric Comb Binding MachineA4 Electric Comb Binding MachineA4 Electric Comb Binding Machine
CategoriesElectric comb binding machine
BrandSUPU
ModelCB330E
Update TimeApr 20,2024
Detail Information

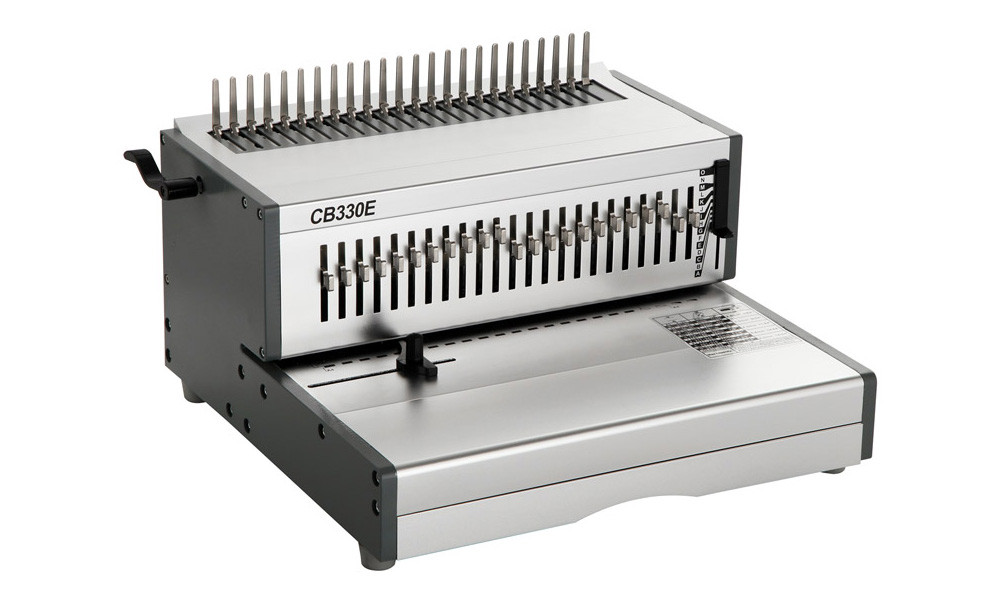

Heavy Duty Electric comb binding machine CB330E

Plastic Comb Binding is still the most popular binding method today! Plastic combs are widely used by schools and businesses, and are also easy for home use. Comb Binding Machines are easy to use and affordable. Plastic Comb Binding Machines are available in either manual or electric punch. An electric punch machine is more common in the office and school marketplace as it alleviates operator fatigue on larger binding jobs.

  • Electric Punching up to 30 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 500 sheets.

  • Use all sizes of plastic comb from 6mm to 50mm.

  • Side margin is adjustable.

Maximum:

  • Max. bind up 500 sheets

  • Width 330mm

  • Punch up to 30 sheets

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently

Model Name

CB330E

Punch Width

330mm

Punching Thickness

30sheets

Punch Width

14.25mm

Disengagement Punch pins

23

Number of punch pins

23

Binding Thickness

500sheets

Motor

230V,50HZ/120W
110V,60HZ/120W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.

PRODUCT DETAIL


  • Measure the thickness of the document and select the appropriate apron specification according to the letter

  • Select the correct comb diameter using the document measure


  • Select the correct back margin depth for the number of sheets


  • Select the correct punch profile for the sheet size. Select releasable dies as appropiate


  • Punch sheets in small batches that do not overload the machine of the use
    (Max 25 sheets)


  • The machine punching when pressure foot switch


  • Punch front and back covers first


  • Load punched sheets directly onto the opened comb, Starting with the front of the document.


  • Push the comb lever backwards to close the comb and remover the bound document.


We do a lot of testing before final package to pursue "100% quality" goal!
