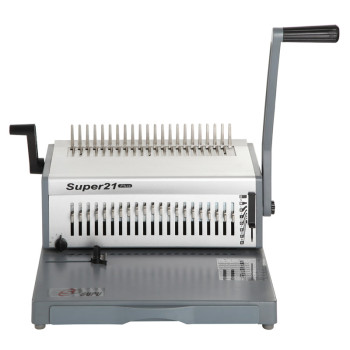

Office Aluminum Comb Binding Machine SUPER21 plus
This heavy duty comb binding equipment is a manual punch and binding. Side edge guide adjustable can selected in according to your sheet thickness. Document measurement aids to select proper comb size. The powerful comb binding capacity can bind up to 500 sheets for 20lb(80g), andA4, A5,B5 and smaller size and letter size documents.
Manual Punching up to 25 sheets 70g paper each time
Punching A4 format,11'' size paper.
Binding documents up to 500 sheets.
Use all sizes of plastic comb from 6mm to 50mm.
Side margin is adjustable.
Max. bind up 500 sheets
Punch up to 2--3mm
Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently
Disengagement Punch pins
Number of punch pins
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.
All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.
Measure the thickness of the document and select the appropriate apron specification according to the letter
Select the correct comb diameter using the document measure
Select the correct back margin depth for the number of sheets
Select the correct punch profile for the sheet size. Select releasable dies as appropiate
Punch sheets in small batches that do not overload the machine of the use
The machine punching when use handle
Punch front and back covers first
Load punched sheets directly onto the opened comb, Starting with the front of the document.
Push the comb lever backwards to close the comb and remover the bound document.
We do a lot of testing before final package to pursue "100% quality" goal!
