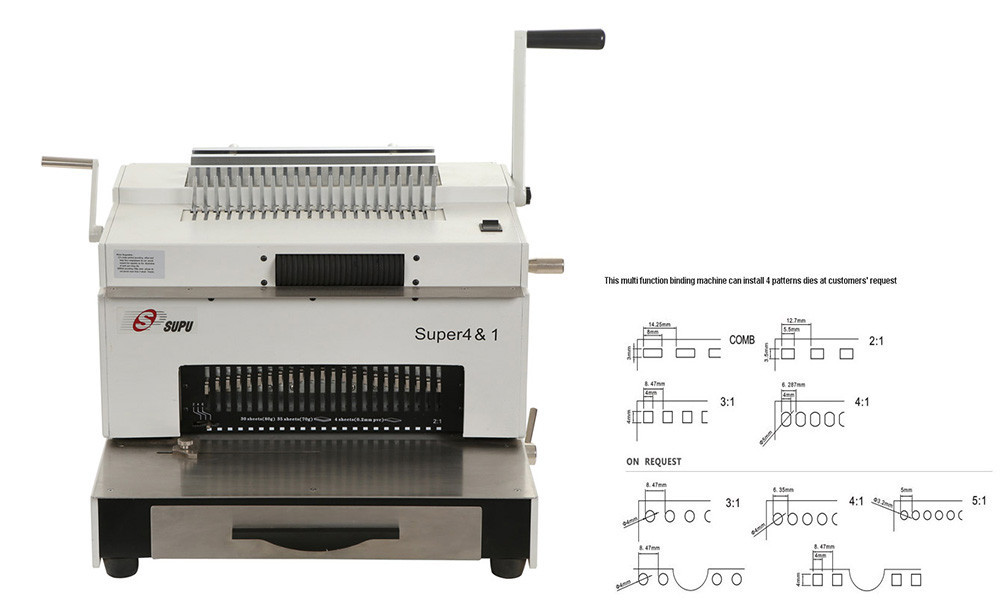

4 in 1 Binding Machine SUPER 4&1

4 in 1 Binding Machine SUPER 4&1

4 in 1 Binding Machine SUPER 4&1
4 in 1 Binding Machine SUPER 4&14 in 1 Binding Machine SUPER 4&14 in 1 Binding Machine SUPER 4&14 in 1 Binding Machine SUPER 4&14 in 1 Binding Machine SUPER 4&1
CategoriesMultifunction binding machine
Max punching width :300mm
Max punching thickness:25-35 sheets
Max binding thickness:380-500mm
FOB portNingbo/Shanghai
Terms of PaymentL/C, T/T, Western Union, MoneyGram
Update Time2022/5/24
Detail Information


This 4 IN 1 Binding Machine  is great machine  for people who want more options in a single binding machine. High-performance machines built specifically for companies that do a lot of book binding that requires different binding formats, such as comb , double wire loop ,single coil binding. The depth margin and side margin controls on theMulti Function Revolver Punching And Binding Machine ensure that the all punches are well-centered and are placed at the correct spot along the margin. This multi-format versatility that makes the Multi Function Revolver Punching And Binding Machine a popular choice among schools, colleges, print shops, corporate marketing departments, churches, and business development departments.

  • Electric heavy duty and multi-function binding machine

  • Electric punching for  22000 sheets/hour

  • Interchangeable punching die by manual revolving

  • Punching up to 25-35 sheets each time depending on each die

  • With comb binding, wire binding, coil inserting


  • Max. bind up 318 sheets

  • Max. bind up 180 sheets

  • Max. bind up 500 sheets

  • Width 300mm

  • Punching up to calendar

  • Max.thickness 2.5--4mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently

Model Name


Punch Width


Punching Thickness


Punch Width

Depending on each die

Disengagement Punch pins

Depending on each die

Number of punch pins

Depending on each die

Binding Thickness



Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


  • The first we need choose the right die before binding. Unlock the lock-handle drawing

  • Put out the die-changing handle drawing

  • Revolve the die-changing handle 360° clockwise

  • Lock up the lock-handle drawing

  • The machine punching when pressure foot switch panel

  • Place plastic ring in back of comb with opening upward, pull down the binding handle  clockwise to open the comb

  • Closing the wire by using the closing handle

  • Inserter the coil to the punched sheets by handle in the first circles then press roller button to make roller run then lean the coil against the roller to make it inserting automatically .

  • Cut and crimp the coil with plier attached with machine ,completing the binding
