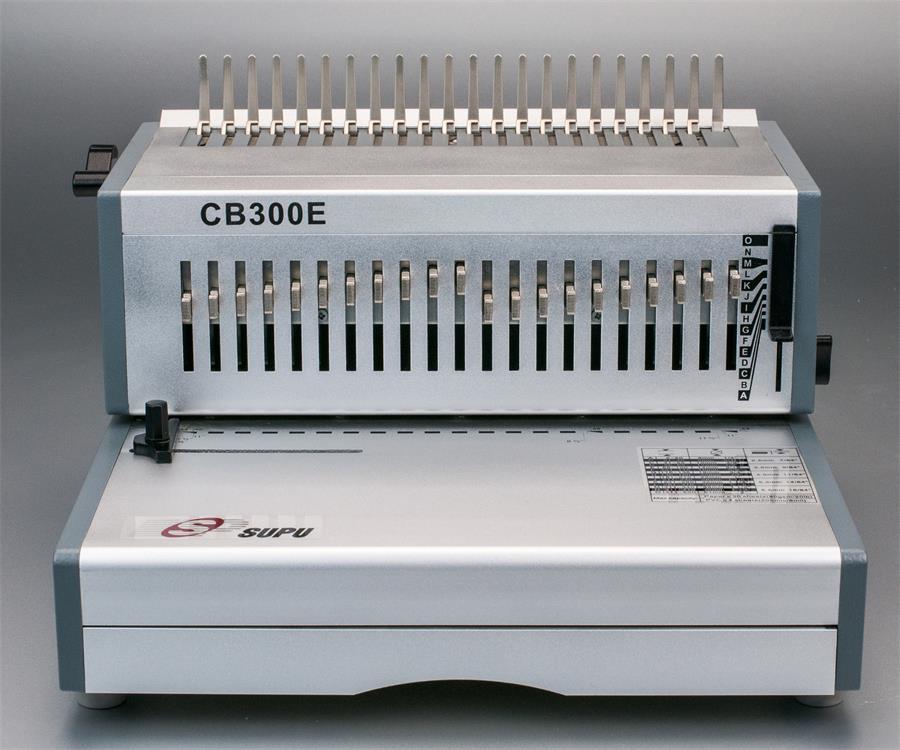

A4 Size Electric Heavy Duty Comb Binding Machine CB300E
|Categories||Electric comb binding machine|
|Album||View larger image|
|Max punching width :||300mm|
|Max punching thickness:||32sheets|
|Max binding thickness:||500mm|
|Terms of Payment||L/C, D/P, T/T, Western Union|
Heavy Duty Electric comb binding machine CB330E
Plastic Comb Binding is still the most popular binding method today! Plastic combs are widely used by schools and businesses, and are also easy for home use. Comb Binding Machines are easy to use and affordable. Plastic Comb Binding Machines are available in either manual or electric punch. An electric punch machine is more common in the office and school marketplace as it alleviates operator fatigue on larger binding jobs.
Electric Punching up to 30 sheets 70g paper each time
Punching A4 format,11'' size paper.
Binding documents up to 500 sheets.
Use all sizes of plastic comb from 6mm to 50mm.
Side margin is adjustable.
Max. bind up 500 sheets
Punch up to 2.5--4mm
Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free Hign capacity waste container requires emptying less frequently
Disengagement Punch pins
Number of punch pins
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.
All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.
Measure the thickness of the document and select the appropriate apron specification according to the letter
Select the correct comb diameter using the document measure
Select the correct back margin depth for the number of sheets
Select the correct punch profile for the sheet size. Select releasable dies as appropiate
Punch sheets in small batches that do not overload the machine of the use
(Max 21 sheets)
The machine punching when pressure foot switch
Punch front and back covers first
Load punched sheets directly onto the opened comb, Starting with the front of the document.
Push the comb lever backwards to close the comb and remover the bound document.
We do a lot of testing before final package to pursue "100% quality" goal!
