330mm Electric Double Wire Binding Machine CW330E

330mm Electric Double Wire Binding Machine CW330E
330mm  Electric  Double Wire Binding Machine CW330E
330mm  Electric  Double Wire Binding Machine CW330E330mm  Electric  Double Wire Binding Machine CW330E330mm  Electric  Double Wire Binding Machine CW330E330mm  Electric  Double Wire Binding Machine CW330E
CategoriesElectric wire binding machine
AlbumView larger image
BrandSUPU
ModelCW330E
Max Punching width330mm ( FC size)
Max Punching thickness30sheets
Max binding thickness143 sheets
Punch pins38
Pitch8.47mm(3:1)
FOB portNingbo/Shanghai
Terms of PaymentT/T
Update Time2020-04-02
Detail Information

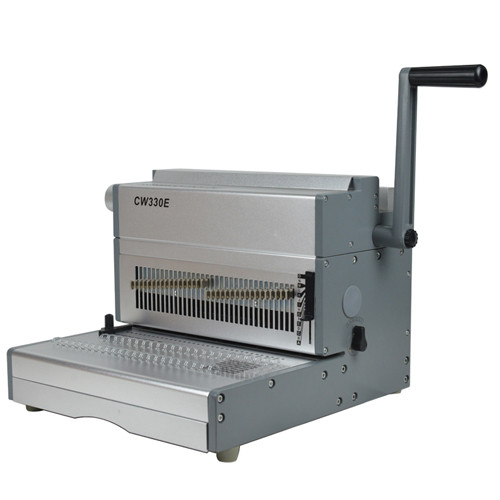

330mm  Electric  Double Wire Binding Machine CW330E

FC size (330mm) work width. Full 34disengageable punch dies with hard steel for clean punch hole 4 position depth side margin can be adjustable A sticker on the machine guide you to select the correct wire dimeter Manual Punch & Binding Machine with two seperated handle 3:1 Wire Binding Machine, 3:1 wire punching and 3:1&2:1 wire binding. The paper load is horizontal and has a margin guide to assist the user with the work being done. Maximum binding capacityup to 143 sheets with 3:1 wire,punch up to 32 sheets,

  • Electric Punching up to 30 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 318 sheets.

  • Use all sizes ring from 4.8-14.8 mm

  • Side margin is adjustable.

Maximum:

  • Max. bind up 143 sheets

  • Width 300mm

  • Punch up to 2.5--4mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently


Model Name

CW330E

Punch Width

330mm

Punching Thickness

30sheets

Punch Width

8.47mm

Disengagement Punch pins

38

Number of punch pins

38

Binding Thickness

143sheets

Motor

230V,50HZ/120W
110V,60HZ/120W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


We do a lot of testing before final package to pursue "100% quality" goal!
