Office type manual Plastic Comb Binding Machine (CB221 PLUS)

Office type manual Plastic Comb Binding Machine (CB221 PLUS)

Office type  manual Plastic Comb Binding Machine (CB221 PLUS)
Office type  manual Plastic Comb Binding Machine (CB221 PLUS)Office type  manual Plastic Comb Binding Machine (CB221 PLUS)Office type  manual Plastic Comb Binding Machine (CB221 PLUS)Office type  manual Plastic Comb Binding Machine (CB221 PLUS)Office type  manual Plastic Comb Binding Machine (CB221 PLUS)
CategoriesManual comb binding machine
AlbumView larger image
BrandSUPU
ModelCB221 PLUS
Width300mm
Punching thickness15sheets
Binding thickness500sheets
Pitch14.25
Disengagement Punch Pins21
Number of Punch Pins21
Operation MethodManual
Dimension376x245x300mm
Weight5.5kg
FOB portNINGBO/SHANGHAI
Terms of PaymentT/T
Update Time2018-12-13
Detail Information

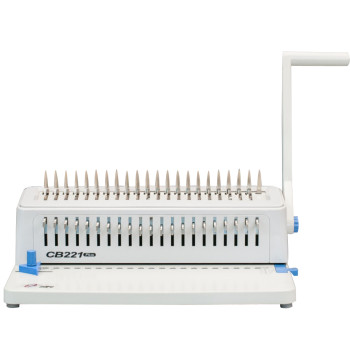

Office Manual Plastic Comb Binding Machine CB221 PLUS

It is light-weight and easy-to-use designed to provide top of the line punching and binding for your everyday needs,All Disengageable Dies for perfect punching of any size paper that narrower than 300mm.This Full Disengagement Punch Pins Plastic Comb Binding Machine CB221 PLUS is ideal for both office and home environments. With an advanced ergonomical design,provides an economical option for your binding needs

  • Manual Punching up to 15 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 500 sheets.

  • Use all sizes of plastic comb from 6mm to 50mm.

  • Side margin is adjustable.

Maximum:

  • Max. bind up 500 sheets

  • Width 300mm

  • Punch up to 15 sheets

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently


Model Name

CB221 PLUS

Punch Width

300mm

Punching Thickness

15sheets

Punch Width

14.25mm

Disengagement Punch pins

21

Number of punch pins

21

Binding Thickness

500sheets

Motor

No

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


PRODUCT DETAIL


  • Measure the thickness of the document and select the appropriate apron specification according to the letter

  • Select the correct comb diameter using the document measure


  • Select the correct back margin depth for the number of sheets


  • Select the correct punch profile for the sheet size. Select releasable dies as appropiate


  • Punch sheets in small batches that do not overload the machine of the use
    (Max 15 sheets)


  • The machine punching when use handle


  • Punch front and back covers first


  • Load punched sheets directly onto the opened comb, Starting with the front of the document.


  • Push the comb lever backwards to close the comb and remover the bound document.


We do a lot of testing before final package to pursue "100% quality" goal!
