2 in 1 Paper Punching Machine SUPER450

2 in 1 Paper Punching Machine SUPER450

2 in 1 Paper Punching Machine SUPER450
2 in 1 Paper Punching Machine SUPER4502 in 1 Paper Punching Machine SUPER4502 in 1 Paper Punching Machine SUPER4502 in 1 Paper Punching Machine SUPER4502 in 1 Paper Punching Machine SUPER450
CategoriesIndustrial Punching Machine
AlbumView larger image
BrandSUPU
ModelSUPER450
Punch thickness(Cover thickness)0~4mm
PVC thickness(PE thickness)0~1mm
Wire closing3/16
Max punch width430mm
Adjustable side margin2.5~6.5mm
Punch speed150 punch/minute
Power voltageAC220V-240V,50HZ A110V-120V,60HZ
Dimension680x710x1120mm
Machine weight165KG
Motor power0.75KW
Terms of PaymentL/C, T/T, Western Union, MoneyGram
Update Time2018-10-23
Detail Information

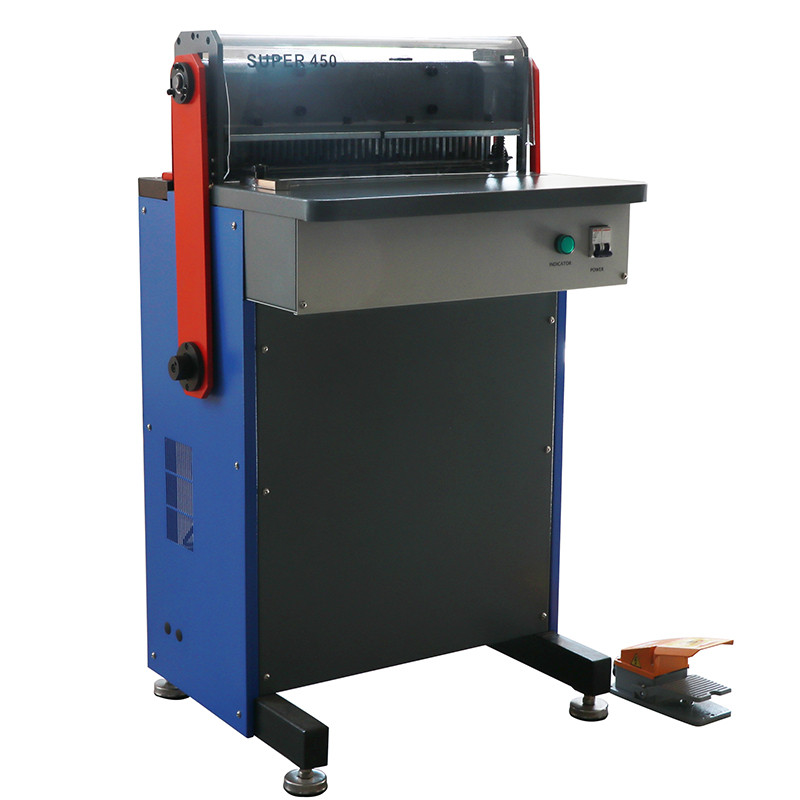

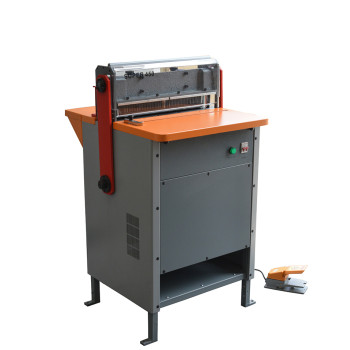

Heavy duty Electric punching and double wire binding machine SUPER450

SUPER450 is a heavy duty electric punching machine, which can be used in industry, enterprise and large organizations with firm design. With handsome and commodious appearance, The working platform is also large enough for you to work comfortably. SUPER450 has advanced motor reducer and special-made mechanical clutch. Motor can run continuously and punching controlled by foot pedal which is easy and safe for operation. Interchangeable die is easy and fast, which can punch various holes.Closing double wire is also available by changing punching dies into closing die and can close any size of double wire .

  • Can change dies, choose different hole

  • Electric wire closing system on the back of machine

  • Can closer wire size from 3/16 "(4.8mm ) to 1 1/2" (38mm )

  • Two adjustable closing Knob make the closing even and perfect

  • Durable and years free and low cost

Maximum:

  • Max. bind up 318 sheets

  • Max. bind up 180 sheets

  • Max. bind up 500 sheets

  • Width 430mm

  • Punching up to calendar

  • Max.thickness 2.5--4mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently


Model Name

SUPER 450

Punch Width

430mm

Punching Thickness

4 mm

Punching speed

150 time/minute

Margin is adjustable

2.5mm—6.5mm

Closer wire

4.8mm—38mm

Change die time

5 minutes

Motor

230V,50HZ/750W
110V,60HZ/750W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


PRODUCT DETAIL


  • Adjust the side margin


  • Adjust the edge guide


  • Put the waste paper into the die


  • Put down the foot pedal


  • Finish the punching



  • Install the safety protect plate onto the front of punching cover


  • Install the activity bed plate

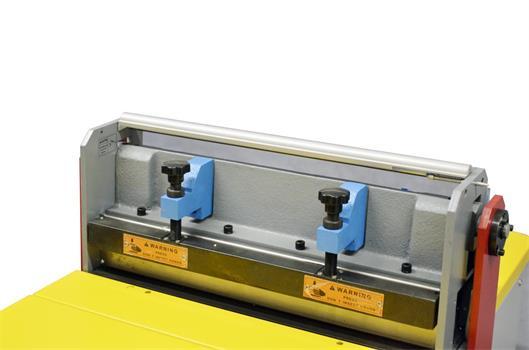

  • Adjust the wire closing bar with ruler according to the size of wire


  • Insert the documents into the closing bar ,ready for binding


We do a lot of testing before final package to pursue "100% quality" goal!
