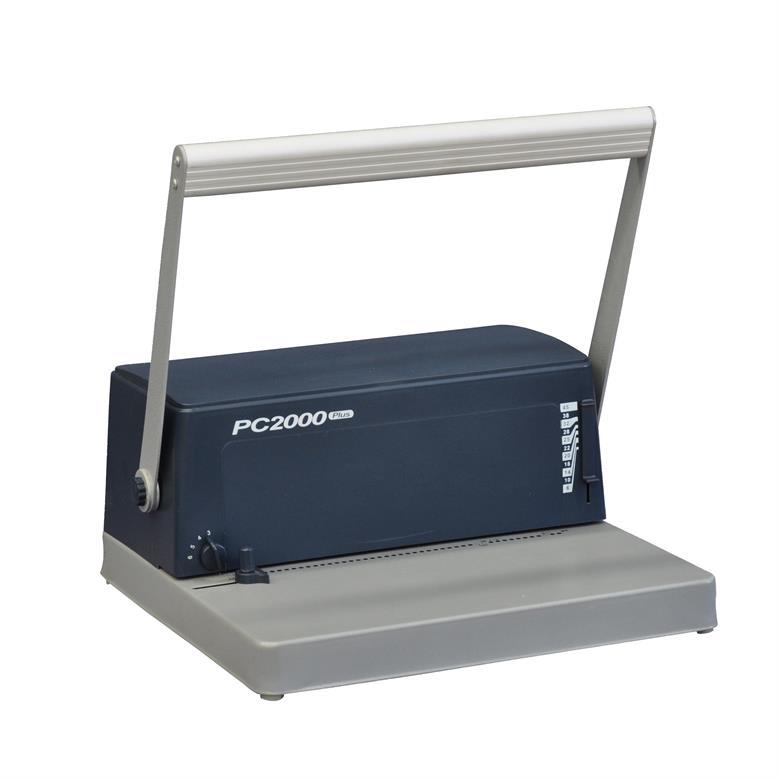

Manual Plastic Coil Spiral Binding Machine (PC2000 PLUS)

Manual Plastic Coil Spiral Binding Machine (PC2000 PLUS)

Manual Plastic Coil Spiral Binding Machine (PC2000 PLUS)
Manual Plastic Coil Spiral Binding Machine (PC2000 PLUS)Manual Plastic Coil Spiral Binding Machine (PC2000 PLUS)
CategoriesManual spiral binding machine
BrandSUPU
ModelPC2000 PLUS
Max Punching width300 mm
Max Punching thickness25 sheets
Pitch6.35 mm
Binding Thickness150 sheets
FOB portNingbo / Shanghai
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update TimeOct 7,2024
Detail Information

Double handle spiral binding machine

With a power foot pedal to make binding easier and release your hands to hold paper to assist inserting coil. Select paper stop can easily to keep paper aligning. Document measure guide to select the right coil size by your sheet thickness. Side margin is adjustable to select which format sheet to punch. Depth margin is adjustable to suit the size of coil being used. All aluminium construction make it durable and many years worry free

  • Manual Punching up to 25 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 180 sheets.

  • Die on request pitch: 3:1  4:1  6 mm

  • Side margin is adjustable.

Maximum:

  • Max. bind up 150 sheets

  • Width 300mm

  • Punch up to 25 sheets

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently


Model Name

PC2000 PLUS

Punch Width

300mm

Punching Thickness

25sheets

Punch Width

6.35mm

Disengagement Punch pins

/

Number of punch pins

46

Binding Thickness

150sheets

Motor

No

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


PRODUCT DETAIL


  • Measure the thickness of the document and select the appropriate apron specification according to the letter

  • Select the correct comb diameter using the document measure


  • Select the correct back margin depth for the number of sheets


  • Select the correct punch profile for the sheet size.


  • Punch sheets in small batches that do not overload the machine of the use
    (Max 15 sheets)


  • The machine punching when use handle


  • Collate the document. Load the coil on to the first 3 holes


  • Hold the document in both hands, with the coil on the right side. Touch the coil against the inserting roller to bind the document


  • Use the binding pliers to cut and fold the end of the metal coil. Clip off the excess coil


We do a lot of testing before final package to pursue "100% quality" goal!
