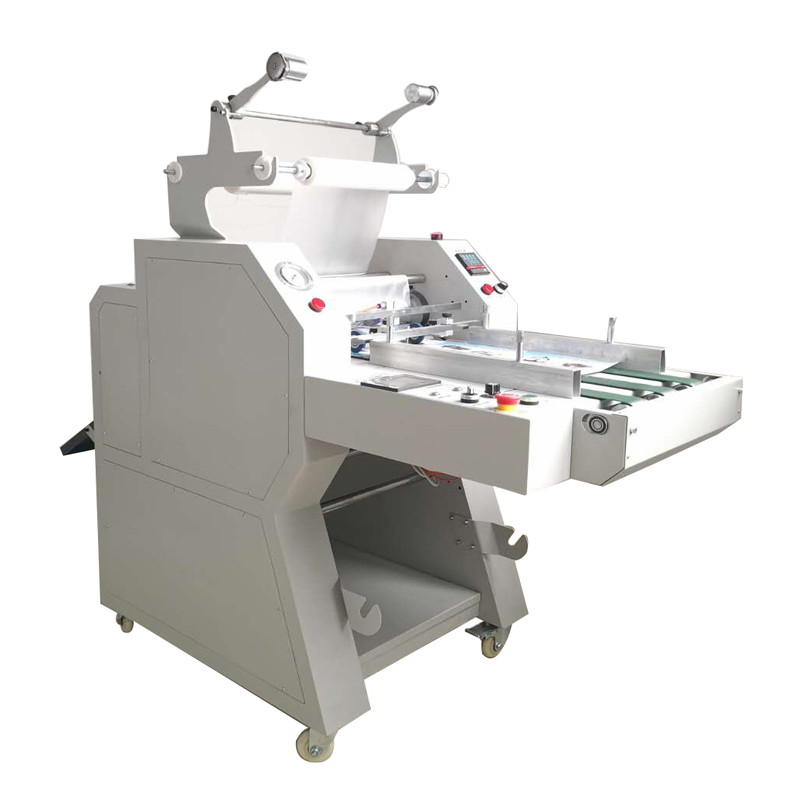

Manual paper feeding roll laminator with auto overlap & pneumatic cutting systems PL-400YA

Manual paper feeding roll laminator with auto overlap & pneumatic cutting systems PL-400YA
Manual paper feeding  roll laminator with auto overlap & pneumatic cutting systems PL-400YA
Manual paper feeding  roll laminator with auto overlap & pneumatic cutting systems PL-400YAManual paper feeding  roll laminator with auto overlap & pneumatic cutting systems PL-400YA
CategoriesLaminator
AlbumView larger image
BrandSUPU
ModelPL-400YA
Max laminating width390mm
Max laminating speed7m/min
Motor Power250W
Heating power1500W
Heating MethodInfrared Heating by hot air
Max Laminating Tempreature160℃
Max Laminating thickness≤1mm
FOB portNINGBO / SHANGHAI
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2020-03-29
Detail Information

Manual paper feeding  roll laminator with auto overlap & cutting systems PL-400YA


  • 250W three-phase gear box reduction motor,  frequency control, Energy Efficiency

  • LCD touch screen, PLC intelligent control system

  • Intelligent temperature control, temperature out of control alarm

    double protection, infrared heating.

  • Electric adjustment single sided anti-curl function

  • Pneumatic pressure control system , with pressure indicator

  • Synchronous conveyor belt conveying platform, automatic overlap  function (overlap size can be set arbitrarily), automatic breaking of finished products (pneumatic), making operation more convenient and working efficiency higher

  • Equipped trimming cutter and dotted knife

  • Equipped jog-type pedal switch for easy diaphragm.

  • Steel roller diameter 110mm, rubber roller diameter 75mm

Maximum:


  • Max. Width 390mm

pneumatic laminator is the perfect solution for high quality  lamination of flyers, book covers, posters and more, it is a good choose for factory and pringting shop.

The machine with automatic overlap function, aking operation more convenient and working

efficiency higher




Model Name

PL-400YA

Laminting width

390mm

Laminating thickness :

              ≤1mm

Laminating speed

0-7  meter/min

Laminating temperature

160℃

Control system

 8-bit microprocessor

Diameter of roll film

110/75mm

Power

110/120/220-240V
50/60HZ/ 1500W

The laminating workshop is preferably a dust-free workshop to ensure the filming effect. The dust on the equipment and on the laminating roller must be completely removed before lamination

When the laminating machine is running, it is forbidden to put your fingers into the two rollers to avoid getting your hands. The pressure of the machine's pressing roller is high. Do not touch it with your hands to prevent burns.
