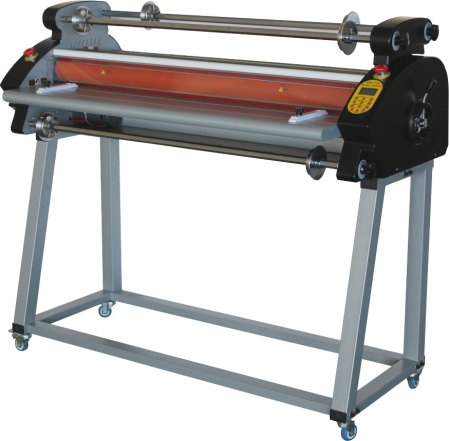

1050mm Hot and cold roll laminator DS-1100

1050mm Hot and cold roll laminator DS-1100

1050mm Hot and cold roll laminator  DS-1100
1050mm Hot and cold roll laminator  DS-11001050mm Hot and cold roll laminator  DS-11001050mm Hot and cold roll laminator  DS-1100
CategoriesLaminator
BrandSUPU
ModelDS-1100
Laminating width1050mm
Laminating thickness<=7mm
Laminating speed3 meter/min
Lainating temperature20-160℃
Power2800W
Rollers diameter75mm
Motor power50W
FOB portNingbo/Shanghai
Terms of PaymentT/T
Update TimeApr 27,2024
Detail Information

1050mm Hot and cold roll laminator  DS-1100

Now it is possible to do one-sided lamination on an ordinary two-sided laminator. Obviously some material has to be used in place of one of the films: Kraft Paper can be used; it will stick to the film but can be trimmed off and discarded. Or, two rolls of single-sided lamination film can be used, with two items at once being placed back-to-back to be run through; they must be pretty well exactly the same size. But a problem here is that the laminations will almost certainly curl: single sided laminators have special design features to take care of this, but using a "Lay Flat" nylon film will help.

  • Adds new single side / doulbe side

  • LCD display , touch botton operation.

  • Adjustment lever can choose different position

  • Six grade pressure adjustment for variors requirements.

  • Non-contact infrared temperature measurement technology ,more precise temperature control

  • better lamination finishing.

Maximum:


  • Max. Width 1050mm


  • Max. thickness up to 7mm


  • Film thickness up to 28mic

Single sided laminators are great for laminating shops and small print shops. A single side laminator is the perfect solution for high quality single side lamination of flyers, book covers, posters and more.


Model Name

DS-1100

Laminting width

1050mm

Laminating thickness

7mm

Laminating speed

3m/min

Laminating temperature

20-160℃

Control system

 8-bit microprocessor

Diameter of roll film

75mm

Power

110/120/220-240V
50/60HZ/2800W

The laminating workshop is preferably a dust-free workshop to ensure the filming effect. The dust on the equipment and on the laminating roller must be completely removed before lamination

When the laminating machine is running, it is forbidden to put your fingers into the two rollers to avoid getting your hands. The pressure of the machine's pressing roller is high. Do not touch it with your hands to prevent burns.
