Profession Hydraulic Roll Laminator HL-520

Profession Hydraulic Roll Laminator HL-520

Profession Hydraulic  Roll Laminator HL-520
Profession Hydraulic  Roll Laminator HL-520Profession Hydraulic  Roll Laminator HL-520Profession Hydraulic  Roll Laminator HL-520
CategoriesLaminator
BrandSUPU
ModelHL-520
Laminating Width520mm
Laminating speed10meter/min
Laminating thickness2mm
Laminating temperature20-160℃
Power supplyAC110V/240 60/50HZ 3000W
Gross Weight390KGS
FOB portNingbo/Shanghai
Terms of PaymentT/T
Update TimeNov 4,2024
Detail Information

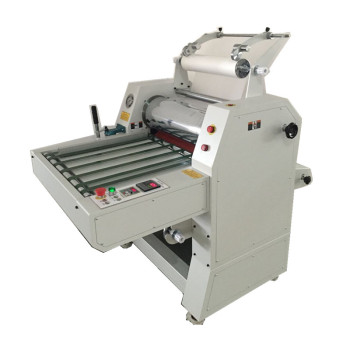

Hydraulic roll laminator HL-520

Our new Hydraulic laminating machine is compact and economic laminator. It adopts the designs of manual feeding,l hydraulic pressuring system, automatic lamination , auto paper winding and   Hydraulic pressuring system provides big pressure to guarantee good laminating quality. Excellent laminating performance solves completely the problem of snowflake spots in traditional lamination, and perfects products quality and also reduces users' production costs so much.With cutter and microperforating system to make the cutter easier after Laminaitng ;Both ok for 2 sides laminating and 1 side laminating . So this type of laminator is a wonderful choice for laminating process to medium and small enterprises,Copy center and schools

  • Automatic paper feeder make your hands free

  • Adds new single side Anti-curl functions

  • Adds Trimming Cutter on left,

  • Adds the Dotted line cutter on right,

  • Electric Adjustment lever can choose different position

Maximum:


  • Max. Width 520mm


  • Max. thickness up to 2 mm


  • Film thickness up to 28mic

we also supply comb binding machine, wire binding machine, spiral binding machine, interchangabel punch machine, creasing machine, laminator, glue binding machine, binding accessories...


Model Name

HL-520

Laminting width

520mm

Laminating thickness

2mm

Laminating speed

10 meter/min

Laminating temperature

20-160℃

Rollers Diameter

 150mm /  200mm

Automatic Grade

Semi-automatic feed

Power

110/120/220-240V
50/60HZ/3900W

The laminating workshop is preferably a dust-free workshop to ensure the filming effect. The dust on the equipment and on the laminating roller must be completely removed before lamination

When the laminating machine is running, it is forbidden to put your fingers into the two rollers to avoid getting your hands. The pressure of the machine's pressing roller is high. Do not touch it with your hands to prevent burns.
