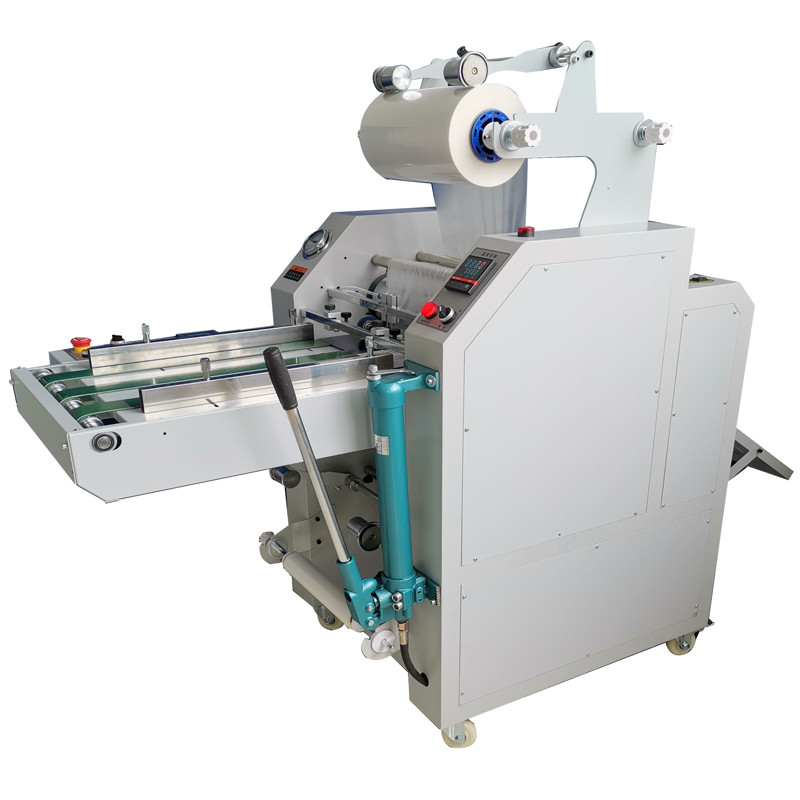

Hydraulic laminator with auto overlap & auto cutting systems HL-500Z

Hydraulic laminator with auto overlap & auto cutting systems HL-500Z

Hydraulic  laminator with auto overlap & auto cutting systems HL-500Z
Hydraulic  laminator with auto overlap & auto cutting systems HL-500ZHydraulic  laminator with auto overlap & auto cutting systems HL-500ZHydraulic  laminator with auto overlap & auto cutting systems HL-500Z
CategoriesLaminator
BrandSUPU
ModelHL-500Z
Max laminating width490mm
Max laminating speed7m/min
Motor Power250W
Heating power2000W
Max Laminating Tempreature160℃
Max Laminating thickness≤1mm
FOB portNINGBO / SHANGHAI
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2022/5/24
Detail Information
Hydraulic paper feeder laminator with auto overlap & pneumatic cutting systems HL-500Z
FUNCTION INTRODUCTION
1.PLC intelligent control, touch screen display system, frequency conversion speed regulation, 250W three-phase AC gearmotor.
2. Synchronous conveyor belt auto feeds paper, auto laps (the lap size can be set arbitrarily), and auto cut the finished product (pneumatic cut)
3. Intelligent temperature control, double protection of temperature out of control, infrared internal heating
4. Manual hydraulic control system, shockproof pressure indicator
5. Single-sided anti-curl, with trimming cutter and dotted knife.
6. Steel roller diameter 110mm, rubber roller diameter 75mm
7.The material of the lower rubber roller is imported non-sticky high temperature resistant silicone.

Technical  Data
Model
HL-500 Z
Laminating width
490mm
Laminating speed
7Meter/Minute
Laminating thickness
1mm
Roller Diameter
110mm
Motor Power
250W
Heating Power
2000W
