Plastic Comb Binding Machine For Office Use (CB2100 PLUS)

Plastic Comb Binding Machine For Office Use (CB2100 PLUS)

Plastic Comb Binding Machine For Office Use (CB2100 PLUS)
Plastic Comb Binding Machine For Office Use (CB2100 PLUS)Plastic Comb Binding Machine For Office Use (CB2100 PLUS)Plastic Comb Binding Machine For Office Use (CB2100 PLUS)Plastic Comb Binding Machine For Office Use (CB2100 PLUS)Plastic Comb Binding Machine For Office Use (CB2100 PLUS)
CategoriesManual comb binding machine
AlbumView larger image
BrandSUPU
ModelCB2100 PLUS
TypeComb Binding Machine
Punch MethodManual
colorwhite
modelCB2100 plus
Width300mm
Punching thickness25sheets
Pitch14.2mm
Disengagement punch pins21
Number of punch pins21
Binding thickness500sheets
FOB portSHANGHAI/NINGBO
Terms of PaymentT/T, Western Union
Update Time2018-10-23
Detail Information

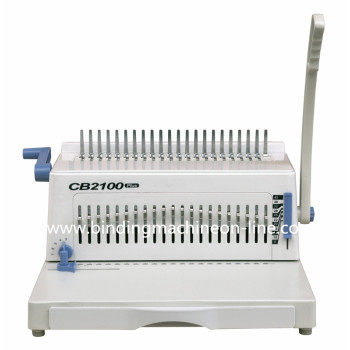

Plastic Comb Binding Machine For Office Use CB2100 PLUS

CE,CB,ETL,SAA cetificate. Manual punching and binding. Strong punch capactiyup to 25 sheet per time. Strong binding capacity up to 500sheets 14.25mm pitch. Full 21 disengagement punch pins can punch wide range size paper,Eg. A4,A3,B5, US letter and smaller size. Select paper stop assist to ensure the sheet aligning. High capacity waste tray included to hold shred papers. Document measurement make it easy choose the correct comb size for your documents.Special hardened punches assure a clean and precise punch time after time, even when punching hard to punch materials, such as Polyester, PP, PVC

  • Manual Punching up to 25 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 500 sheets.

  • Use all sizes of plastic comb from 6mm to 50mm.

  • Side margin is adjustable.

Maximum:

  • Max. bind up 500 sheets

  • Width 300mm

  • Punch up to 2--3mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently


Model Name

CB2100 PLUS

Punch Width

300mm

Punching Thickness

25sheets

Punch Width

14.25mm

Disengagement Punch pins

21

Number of punch pins

21

Binding Thickness

500sheets

Motor

No

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


PRODUCT DETAIL


  • Measure the thickness of the document and select the appropriate apron specification according to the letter

  • Select the correct comb diameter using the document measure


  • Select the correct back margin depth for the number of sheets


  • Select the correct punch profile for the sheet size. Select releasable dies as appropiate


  • Punch sheets in small batches that do not overload the machine of the use


  • The machine punching when pressure foot switch


  • Punch front and back covers first


  • Load punched sheets directly onto the opened comb, Starting with the front of the document.


  • Push the comb lever backwards to close the comb and remover the bound document.


We do a lot of testing before final package to pursue "100% quality" goal!
