8.47mm pitch Electric Wire Binding Machine SUPER34E plus

8.47mm pitch Electric Wire Binding Machine SUPER34E plus
8.47mm pitch Electric  Wire Binding Machine SUPER34E plus
8.47mm pitch Electric  Wire Binding Machine SUPER34E plus8.47mm pitch Electric  Wire Binding Machine SUPER34E plus
CategoriesManual wire binding machine
AlbumView larger image
BrandSUPU
ModelSUPER34E plus
OriginZHEJIANG,CHINA
Max binding capacity318sheets
Max punch capacity28sheets
Max punching length300mm
Max binding length300mm
Number of Punch Pins34
Disengageable Die Pins34
Punching MethodElectric
Binding MethodManual
Unit PriceUS $ 200 / piece
FOB portNingbo/Shanghai
Terms of PaymentL/C, T/T, Western Union, MoneyGram
Update Time2020-01-21
Detail Information

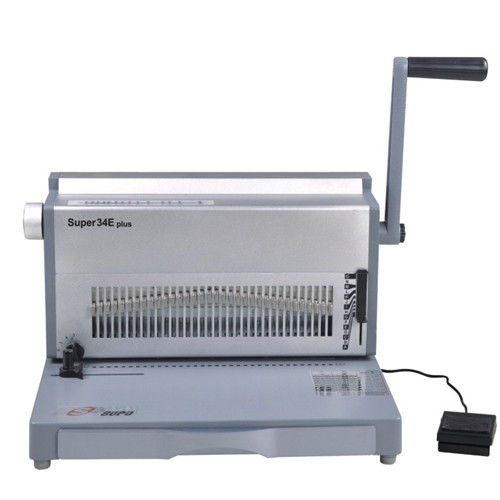

8.47mm pitch Electric  Wire Binding Machine SUPER34E plus

Full 34 disengagement punch pins can punch wide range size paper,Eg. A4,A3,B5,US letter and smaller size. Select paper stop assistant to ensure the sheet aligning. Document measurement guide you to select right wire size. Smart Wire Selector make it easy choose the correct wire diameter for your document. Special hardened punches assure a clean and precise punch time after time, even when punching hard to punch materials, such as Polyester, PP, PVC

  • Electric Punching up to 28 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 318 sheets.

  • Use all sizes of plastic comb from 4.8—14.8.

  • Side margin is adjustable.

Maximum:

  • Max. bind up 143 sheets

  • Width 300mm

  • Punch up to 2--3mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently



Model Name

SUPER34E plus

Punch Width

300mm

Punching Thickness

28sheets

Punch Width

8.47 mm

Disengagement Punch pins

34

Number of punch pins

34

Binding Thickness

318sheets

Motor

120W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.
